Product Description
Product Overview
- Control panel with LCD display
- Electronic control with 4 individual programmable cycle
- 3/4 HP washing pump
- Adjustable rotation speed of stainless-steel rinse arms
- 208/220 V, 50/60 Hz, 1 PH

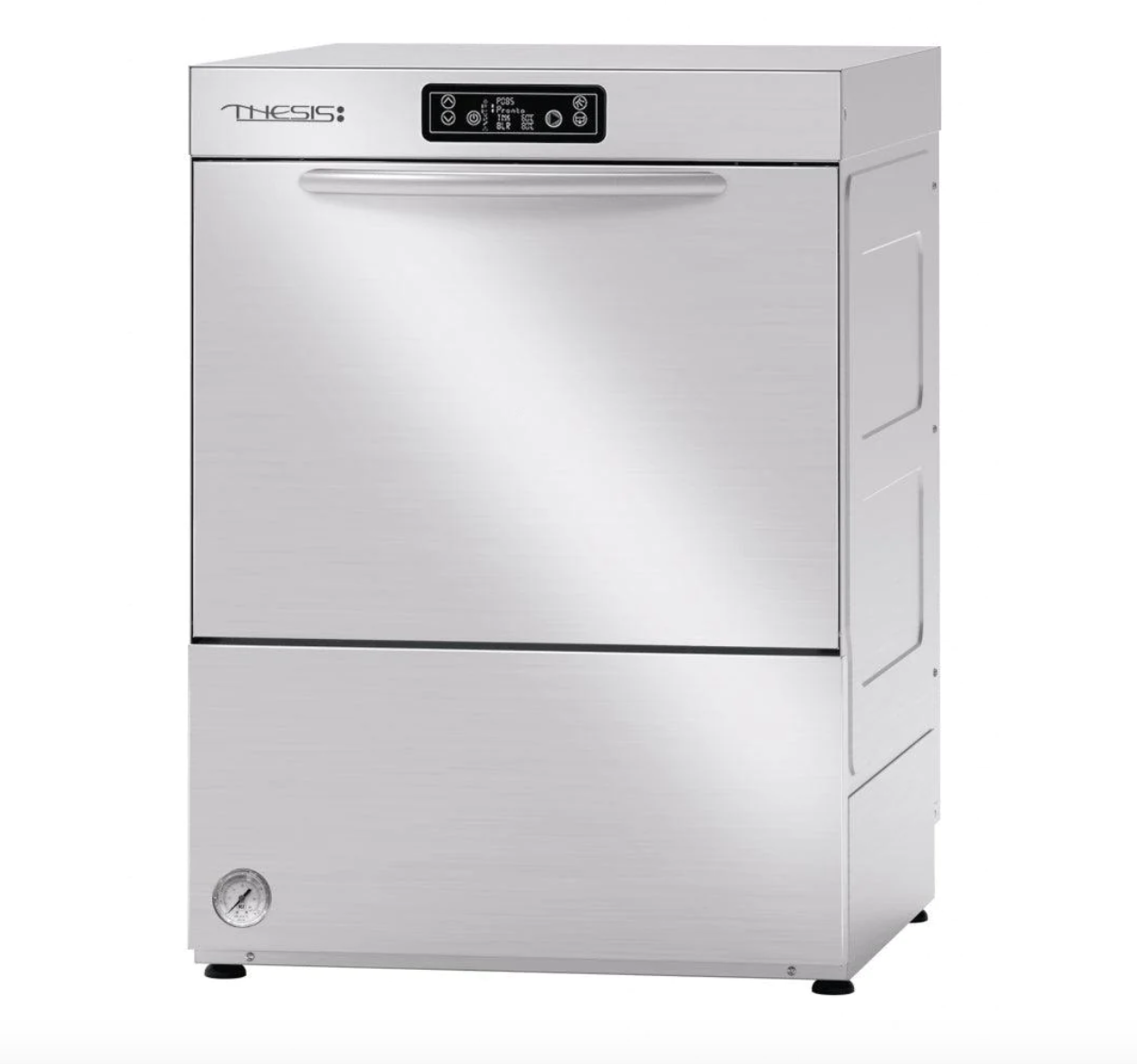

With the H54E-A dishwasher you can wash glasses of different shapes and sizes and 18 dishes per cycle with max Ø of 350 mm thanks to the racks provided, with a maximum productivity of 40 racks/hour (720 dishes/hour). The drain pump optional allows you to handle draining automatically and perform a partial replacement of clean water at each wash.
This model is ETL and ETL Sanitation certified as it meets the requirements of the NSF/ANSI 3 rule. The washing cycles have been specifically designed to make the dishwasher compliant with the NSF hygienic safety standards, recognized by the American National Standards Institute (ANSI).
The HANDY line stands out for its wide range of models suitable for any situation. The simple electronic board control system makes it possible to set and control the rinsing and draining times and temperatures and the relevant Thermostops, crucial for ensuring excellent final results. With the control panel you can choose one of its 4 washing cycles and one automatic drain cycle (with installed drain pump), easily view on the display the tank and boiler temperature, the messages of the Self-diagnosis system and the Scheduled Maintenance warning. The smart Start button changes colour to always keep you up-to-date on the dishwasher status with the greatest ease.
The electronic control allows you to manage various parameters to give you an absolute customization level and the continuous self-diagnosis allows you to minimize machine downtime, suggesting some operations that need to be verified. The self-cleaning cycle at the end of the day cleans the wash tank and empties the hot water from the boiler, preventing limestone from building up inside. The standard double peristaltic electric rinse-aid and detergent dispenser ensures the best result from each wash cycle with great savings thanks to the precise dosage managed by the electronic card; whereas, the moulded washing and rinsing arms ensure great reliability and durability. The Thermo-stop function checks that washing and rinsing begin only when the desired temperature is reached. The bodywork is made entirely of AISI 304 steel and has been designed with all of the components in the front for easy technical assistance. Sturdy and reliable dishwashers to best deal with every moment of your day.
More Features:
- Control panel with LCD Display
- EWC System, electronic control with 4 individual programmable cycle
- Built in Drain pump with Ecology Care system for partial refilling of clean water every washing cycle
- ETL Sanitation to guarantee a sanitizing wash and a high rinse temperature.
- Adjustable 3 Lt/h detergent dispenser - Adjustable 0,3 Lt/h rinse-aid dispenser
- Uses standard 20”x 20” (500 x 500 mm) racks
- Basket supplied: 1 dish basket, 1 glass basket, 2 cutlery Tray
- Wash pump: 3/4 HP
- Tank: heating element: 2.6 kW, capacity: 7 G (26 Lt)
- Booster: heating element: 2.5 kW, capacity: 1.9 G (7.3 Lt)
- Door clearance: 14.0” (355 mm) H
- Stainless steel detergent injector welded to the wash tank
- Vacuum breaker valve
- Adjustable rotation speed of stainless-steel rinse arms
- Integral stainless-steel tank filter + New filtering group for suction and drain
- Low maintenance, heavy duty stainless Steel
| Specifications | |
|---|---|
| Model | H54E-A SPEC SHEET |
| Width | 23 inches |
| Depth | 24 inches |
| Height | 32 inches |
| Voltage | 208/220V |
| Hertz | 50/60 Hz |
| Phase | 1 Phase |
| Amps | 16 Amps |
| Tank Heat | 2.6 kW |
| Tank Capacity | 7 Gal. |
| Booster Heater | 2.5 kW |
| Horsepower | 3/4 HP |
| Racks per Hour | 35 |
| Door Opening | 14 inches |
| Water Connection Size | 3/4 NPT |
| Dishwasher Type | Hot Water Sanitizing |
| Product Type | Dishwashing Equipment |
